Wanna play with PEC

Postby kirjushyk » Tue Jun 10, 2014 3:13 pm

Wanna play with expansion slots. Is there simple way to connect either LED set or Servo?
User avatar
kirjushyk

Posts: 14
Joined: Thu Jun 05, 2014 9:53 pm
Location: Ukraine

Re: Wanna play with PEC

Postby 9600 » Tue Jun 10, 2014 3:32 pm

At present, unless you make your own Samtec BTH breakout board, I believe you would have to get one from Zebax.

Once you have the means of breaking out a PEC you then have the option of using:


With the latter you could access pins via sysfs, for example. I'd also make sure you have a recent FPGA bitstream (all those presently linked to from the SD card instructions have single-ended GPIO support).

Cheers,

Andrew
Andrew Back (a.k.a. 9600 / carrierdetect)
User avatar
9600

Posts: 997
Joined: Mon Dec 17, 2012 3:25 am

Re: Wanna play with PEC

Postby kirjushyk » Tue Jun 10, 2014 7:26 pm

Thank you, Andrew. Will buy one of those connectors :-)
User avatar
kirjushyk

Posts: 14
Joined: Thu Jun 05, 2014 9:53 pm
Location: Ukraine

Re: Wanna play with PEC

Postby tomazb » Wed Jun 25, 2014 6:27 pm

I made my own at dirtypcbs.com for just 14$ - 10 PCBs. I can start with the software now...
Attachments

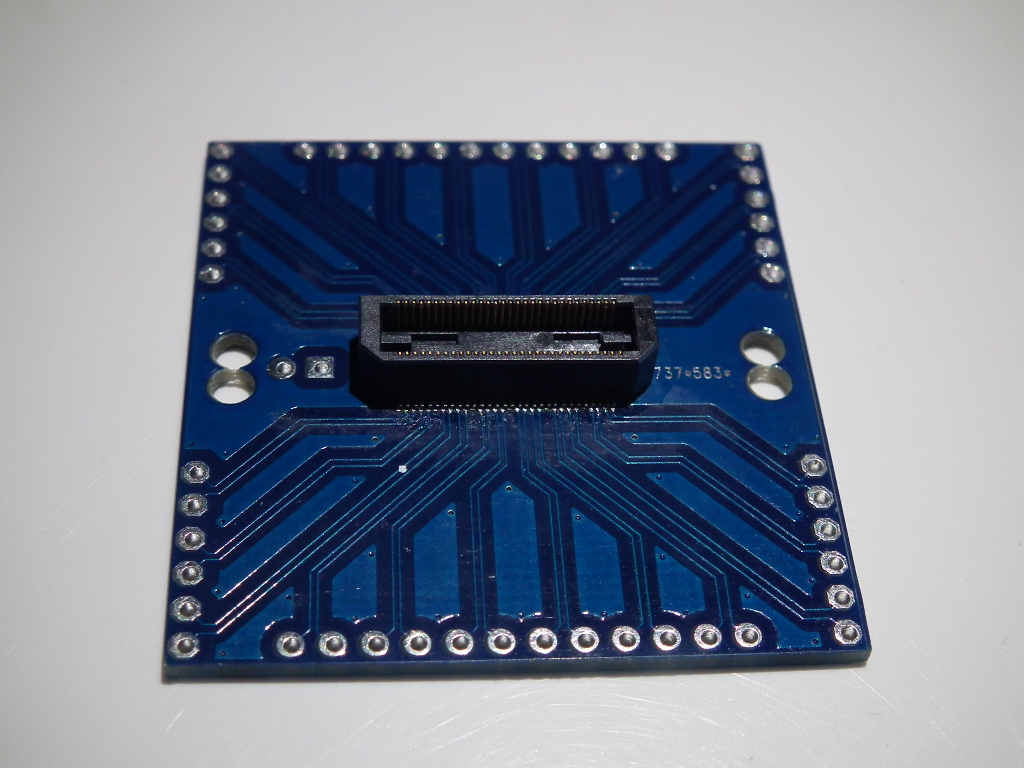

breakout board with mounted Samtec connector

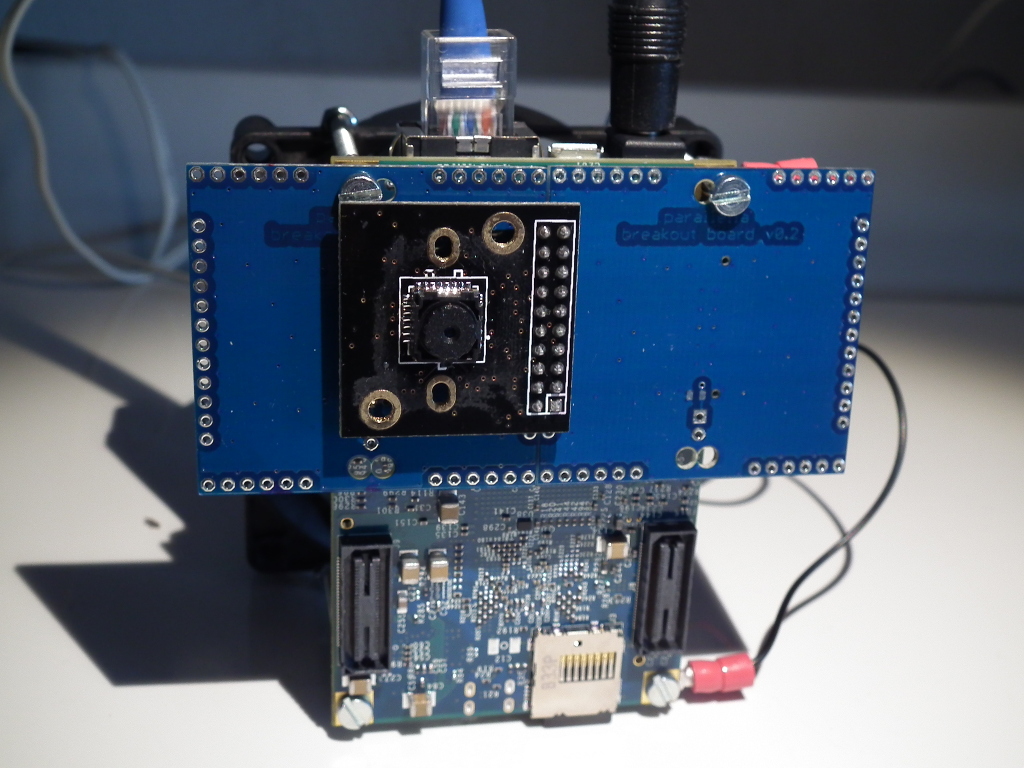

two adjacent breakout boards with camera sensor
tomazb

Posts: 9
Joined: Mon Dec 17, 2012 3:24 am
Location: Slovenia

Re: Wanna play with PEC

Postby aolofsson » Wed Jun 25, 2014 6:35 pm

Very nice!!! That's a really good looking breakout board. Beautiful symmetry. :D
Andreas
User avatar
aolofsson

Posts: 1005
Joined: Tue Dec 11, 2012 6:59 pm
Location: Lexington, Massachusetts,USA

Re: Wanna play with PEC

Postby tomazb » Wed Jun 25, 2014 9:21 pm

The symmetry is actually functional. I can tile with four boards to get the 100mil raster for the header connectors ;)
tomazb

Posts: 9
Joined: Mon Dec 17, 2012 3:24 am
Location: Slovenia

Re: Wanna play with PEC

Postby aolofsson » Thu Jun 26, 2014 4:22 am

Seriously, how can I buy some of these? :D
User avatar
aolofsson

Posts: 1005
Joined: Tue Dec 11, 2012 6:59 pm
Location: Lexington, Massachusetts,USA

Re: Wanna play with PEC

Postby frank_buss » Thu Jun 26, 2014 5:05 am

tomazb wrote:The symmetry is actually functional. I can tile with four boards to get the 100mil raster for the header connectors ;)

Nice, I tried the same with my breakout board, one tile with one Samtec connector, but it was not very stable. But with your layout it should be fairly stable, If you solder the header connectors for the two opposite tiles in your second image, or if you use some screws and screw-nuts to secure it.
frank_buss

Posts: 18
Joined: Wed Jun 11, 2014 1:50 pm

Re: Wanna play with PEC

Postby aolofsson » Thu Jun 26, 2014 5:37 am

btw, the Parallella is symmetrical in both direction, so could you fit four at the same time?
User avatar
aolofsson

Posts: 1005
Joined: Tue Dec 11, 2012 6:59 pm
Location: Lexington, Massachusetts,USA

Re: Wanna play with PEC

Postby tomazb » Thu Jun 26, 2014 6:52 am

Yes, a tile of four is possible, that's why the 3mm mechanical holes are positioned so near to match the mounting holes on the other side. I have yet to test the electrical characteristics, but if someone wants to order the PCBs, I can put my gerbers somwhere. I got mine from dirtypcbs.com in 3 weeks after order.
tomazb

Posts: 9
Joined: Mon Dec 17, 2012 3:24 am
Location: Slovenia
